Availability: In Stock

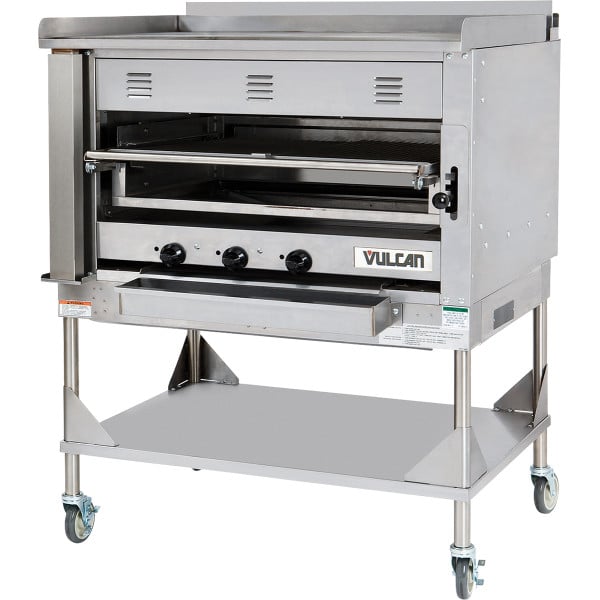

Vulcan VST4B Natural Gas V Series 45 1/2" Wide Deck-Type 3 Cast Iron Burner Heavy-Duty Stainless Steel Chophouse Broiler With 1/2" Thick Griddle Plate On Casters, 135,000 BTU
Product Code: VST4B_NAT
$22,925.00
Email us to place your order and you will get a discount up to 10% off.
Description
This VST4B commercial gas deck-type Chophouse broiler operates on Natural Gas at 45,000 BTU per burner for a total 135,000 BTU with a 3/4" gas connection and it comes included with a gas pressure regulator. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.
There are 2 infinite heat valves on the deck of this commercial gas deck-type Chophouse broiler. There is a spring-balanced 5-position grid for the deck on this unit and the stainless steel construction of the front, top, and sides of this deck-type Chophouse broiler makes it durable enough to stand up to the daily usage of any commercial kitchen environment.
The VST4B is the heavy-duty V Series 45 1/2" wide gas-powered deck-type Chophouse broiler from Vulcan that has a 3 cast iron burners with ceramic radiant tiles for a 35 1/2" wide x 27" deep grid, with a 1/2" thick griddle plate on top with 2" splashes.
The deck-type Chophouse rolls smoothly on a set of heavy-duty casters. This commercial gas deck-type Chophouse broiler is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.
V series units are all modular and interchangeable to allow you to create the perfect customized workstation, including a variety of types of ranges from open burners, hot tops, French tops, charbroilers, and griddles, to other units like refrigerated bases, cabinets, convection or finishing ovens.
Vulcan VST4B Features
- V Series heavy-duty 45 1/2" wide deck-type Chophouse broiler with griddle top
- Griddle Plate Thickness: 1/2"
- Burner Type: Cast iron burners with ceramic radiant tiles
- Spring-balanced 5-position grid for each deck
- Base Material: Stainless Steel
- Broiler Grid Size: 35 1/2" wide x 27" deep
- Controls: 2 infinite heat valves per deck
- Number of Burners: 3
- Burner BTU: 45,000
- Gas Type: Natural Gas
- Total BTU: 135,000
- Heavy-duty casters
- Gas Connection: 3/4"
- Gas pressure regulator included
- CSA Blue Flame certified
- CSA Design certified
- NSF listed for safety
Vulcan VST4B Benefits
- Energy-efficient heavy-duty burners
- Modular and interchangeable V series units allow you to create the perfect customized workstation
- Durable stainless steel and heavy-duty cast iron grates stand up to any commercial kitchen environment
Overall Dimensions:
Height: 56 1/4"
Width: 45 1/2"
Depth: 34 3/16"
- Controls: 2 infinite heat valves per deck
- Number of Burners: 3
- Burner BTU: 45,000
- Gas Type: Natural Gas
- Total BTU: 135,000
- Heavy-duty casters
- Gas Connection: 3/4"
- V Series Chophouse broiler with griddle top
- Griddle Plate Thickness: 1/2"
- Gas pressure regulator included
- CSA Design & CSA Blue Flame certified
- NSF listed for safety
- Burner Type: Cast iron burners with ceramic radiant tiles
- Spring-balanced 5-position grid for each deck
- Base Material: Stainless Steel
- Broiler Grid Size: 35 1/2" wide x 27" deep
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Default | |
Brand Line | V Series |
Burner BTU | 45,000 |
Burner Type | Cast Iron With Ceramic Radiant Tiles |
Casters | Yes |
Color | Silver |
Controls | Individual Infinite Heat Controls |
CSA Blue Flame Certified | Yes |
CSA Design Certified | Yes |
Depth | 34 3/16 Inches |
Features | Spring-Balanced 5-Position Grip Deck Level Bar |
Gas Connection | 3/4 Inches |
Gas Type | Natural Gas |
Hazardous Material | No |
Height | 56 1/4 Inches |
Installation Type | Freestanding |
Manufacturer | Vulcan |
Manufacturer Part # | VST4B |
Material | Stainless Steel |
Model Number | VST4B |
NSF Listed | Yes |
Number Of Decks | 1 |
Oversized Shipping | No |
Power | Gas |
Regulator Included | Yes |
Ship Weight | 986 lb |
Standing Pilot Ignition | Yes |
Total BTU | 135,000 |
Type | Commercial Gas Broilers |
Width | 45 1/2 Inches |
