Availability: In Stock

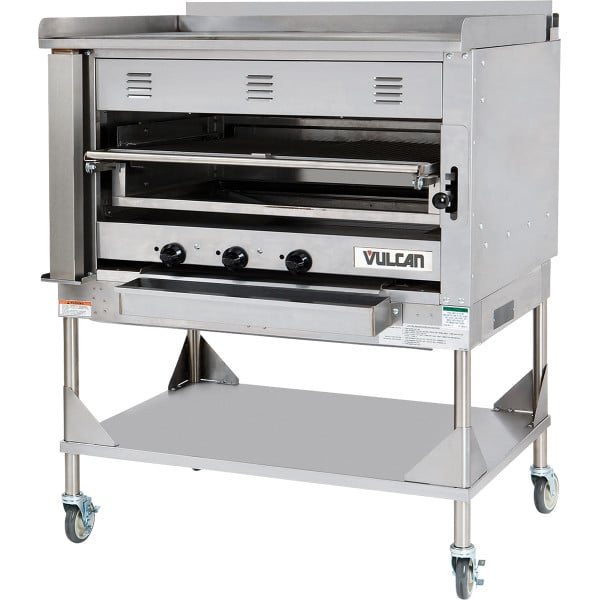

Vulcan VST4B Liquid Propane V Series 45 1/2" Wide Deck-Type 3 Cast Iron Burner Heavy-Duty Stainless Steel Chophouse Broiler With 1/2" Thick Griddle Plate On Casters, 135,000 BTU
Product Code: VST4B_LP
$22,925.00
Email us to place your order and you will get a discount up to 10% off.
Ask About This Product
Description

V series units are all modular and interchangeable to allow you to create the perfect customized workstation, including a variety of types of ranges from open burners, hot tops, French tops, charbroilers, and griddles, to other units like refrigerated bases, cabinets, convection or finishing ovens.

This VST4B commercial gas deck-type Chophouse broiler operates on Liquid Propane at 45,000 BTU per burner for a total 135,000 BTU with a 3/4" gas connection and it comes included with a gas pressure regulator. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.

There are 2 infinite heat valves on the deck of this commercial gas deck-type Chophouse broiler. There is a spring-balanced 5-position grid for the deck on this unit and the stainless steel construction of the front, top, and sides of this deck-type Chophouse broiler makes it durable enough to stand up to the daily usage of any commercial kitchen environment.

The VST4B is the heavy-duty V Series 45 1/2" wide gas-powered deck-type Chophouse broiler from Vulcan that has a 3 cast iron burners with ceramic radiant tiles for a 35 1/2" wide x 27" deep grid, with a 1/2" thick griddle plate on top with 2" splashes.

The deck-type Chophouse rolls smoothly on a set of heavy-duty casters. This commercial gas deck-type Chophouse broiler is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.

Vulcan VST4B Features

  • V Series heavy-duty 45 1/2" wide deck-type Chophouse broiler with griddle top
  • Griddle Plate Thickness: 1/2"
  • Burner Type: Cast iron burners with ceramic radiant tiles
  • Spring-balanced 5-position grid for each deck
  • Base Material: Stainless Steel
  • Broiler Grid Size: 35 1/2" wide x 27" deep
  • Controls: 2 infinite heat valves per deck
  • Number of Burners: 3
  • Burner BTU: 45,000
  • Gas Type: Liquid Propane
  • Total BTU: 135,000
  • Heavy-duty casters
  • Gas Connection: 3/4"
  • Gas pressure regulator included
  • CSA Blue Flame certified
  • CSA Design certified
  • NSF listed for safety

Vulcan VST4B Benefits

  • Energy-efficient heavy-duty burners
  • Modular and interchangeable V series units allow you to create the perfect customized workstation
  • Durable stainless steel and heavy-duty cast iron grates stand up to any commercial kitchen environment

Overall Dimensions:
Height: 56 1/4"
Width: 45 1/2"
Depth: 34 3/16"

View all Description
  • Base Material: Stainless Steel
  • Broiler Grid Size: 35 1/2" wide x 27" deep
  • Controls: 2 infinite heat valves per deck
  • Number of Burners: 3
  • Burner BTU: 45,000
  • Gas Type: Liquid Propane
  • Total BTU: 135,000
  • Heavy-duty casters
  • Gas Connection: 3/4"
  • V Series Chophouse broiler with griddle top
  • Griddle Plate Thickness: 1/2"
  • Gas pressure regulator included
  • CSA Design & CSA Blue Flame certified
  • NSF listed for safety
  • Burner Type: Cast iron burners with ceramic radiant tiles
  • Spring-balanced 5-position grid for each deck
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Default
Brand Line V Series
Burner BTU 45,000
Burner Type Cast Iron With Ceramic Radiant Tiles
Casters Yes
Color Silver
Controls Individual Infinite Heat Controls
CSA Blue Flame Certified Yes
CSA Design Certified Yes
Depth 34 3/16 Inches
Features Spring-Balanced 5-Position Grip Deck Level Bar
Gas Connection 3/4 Inches
Gas Type Liquid Propane
Hazardous Material No
Height 56 1/4 Inches
Installation Type Freestanding
Manufacturer Vulcan
Manufacturer Part # VST4B
Material Stainless Steel
Model Number VST4B
NSF Listed Yes
Number Of Decks 1
Oversized Shipping No
Power Gas
Regulator Included Yes
Ship Weight 986 lb
Standing Pilot Ignition Yes
Total BTU 135,000
Type Commercial Gas Broilers
Width 45 1/2 Inches
