Availability: In Stock
Vulcan VGM36B Natural Gas V Series 36" Wide Manual-Control Cabinet Base Griddle Heavy-Duty Stainless Steel Range On Legs, 90,000 BTU
Product Code: VGM36B_NAT
$11,645.00
Email us to place your order and you will get a discount up to 10% off.
Ask About This Product
Description

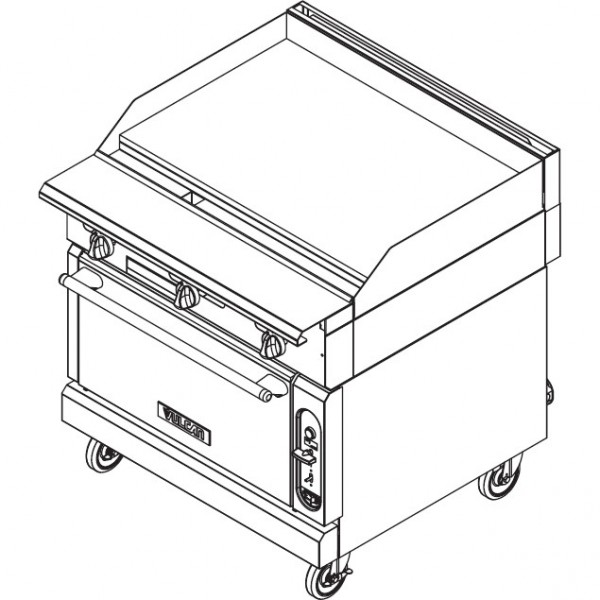

The VGM36B is the heavy-duty V Series gas-powered griddle range from Vulcan that has a cabinet base, manual controls, and a 3/4" thick polished steel 36" wide griddle plate with 4" side splashes, and individual pilots and controls. This cabinet base range comes with 6" adjustable stainless steel legs.

There is a 4" stainless steel stub riser on this unit and the stainless steel front, front top ledge, sides, base, burner box, and stub back on this griddle range that makes it durable enough to stand up to the daily usage of any commercial kitchen environment.

This VGM36B commercial gas griddle range operates on Natural Gas at 90,000 BTU and it has a 1 1/4" diameter front gas manifold and a 1 1/4" rear gas connection. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.

This commercial gas griddle range is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.

V series units are all modular and interchangeable to allow you to create the perfect customized workstation, including a variety of types of ranges from open burners, hot tops, French tops, charbroilers, and griddles, to other units like refrigerated bases, cabinets, convection or finishing ovens.

Vulcan VGM36B Features

  • V Series heavy-duty 36" wide range
  • Base Type: Cabinet Base
  • Control Type: Manual
  • Base Material: Stainless Steel
  • 3/4" thick polished steel plate
  • Burner Type: Griddle
  • Side Splash Height: 4"
  • Individual burner pilots and controls
  • Number of Burners: 3
  • Griddle Plate Width: 36"
  • Burner BTU: 30,000
  • Gas Type: Natural Gas
  • Total BTU: 90,000
  • 4" stainless steel stub riser
  • Gas Connection: 1 1/4" diameter rear gas connection
  • Legs: 6" adjustable stainless steel legs
  • CSA Blue Flame certified
  • CSA Design certified
  • NSF listed for safety

Vulcan VGM36B Benefits

  • Energy-efficient heavy-duty burner
  • Modular and interchangeable V series units allow you to create the perfect customized workstation
  • Durable stainless steel construction stands up to any commercial kitchen environment

Overall Dimensions:
Height: 36"
Width: 36"
Depth: 36 3/4"

View all Description
  • Control Type: Manual
  • Total BTU: 90,000
  • V Series heavy-duty 36" wide range
  • 4" side splashes
  • Legs: 6" adjustable stainless steel legs
  • 1 1/4" gas connection
  • Base Type: Cabinet Base
  • Base Material: Stainless Steel
  • CSA Design & CSA Blue Flame certified
  • NSF listed for safety
  • Number of Burners: 3
  • 3/4" thick polished steel plate
  • Griddle Plate Width: 36"
  • Individual burner pilots and controls
  • Gas Type: Natural Gas
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
