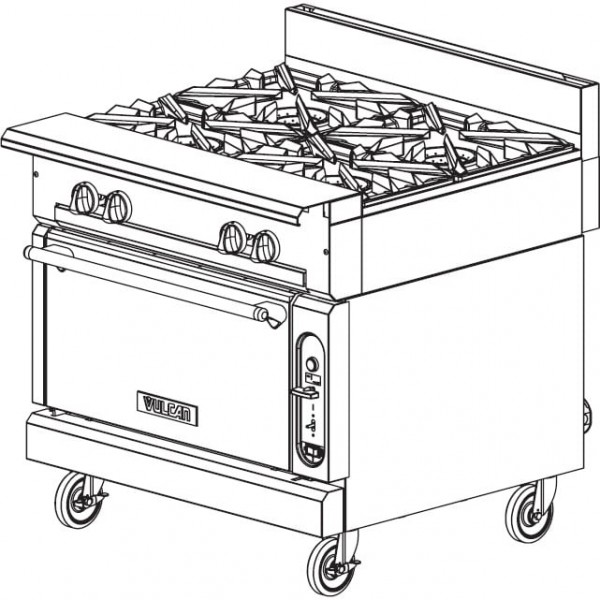

Vulcan V4B36C Natural Gas V Series 36" Wide Convection Oven Base 4 Cast Iron Open Burner Stainless Steel Range On Legs, 172,000 BTU
Product Code: V4B36C_NAT
$18,141.00
Email us to place your order and you will get a discount up to 10% off.
Ask About This Product
Description

The V4B36C is the heavy-duty V Series 36" wide gas-powered open burner range from Vulcan that has a convection oven base, and 4 cast iron open burners with individual pilots and controls. This oven base range stands firmly on 6" adjustable stainless steel legs.

There is durable stainless steel construction on the front, front top ledge, sides, base, burner box, and 4" high stub riser of this open burner range that makes it durable enough to stand up to the daily usage of any commercial kitchen environment.

The blower motor on the convection oven of this open burner range is an electric unit that runs at 115 Volts, 1-phase, and 4 Amps, and the unit comes included with a 9 ft power cord with a standard NEMA 5-15P plug. The convection oven has a porcelain interior that is 13" high x 27" wide x 27" deep with a 175 to 550 degree F temperature range. This commercial gas open burner range is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.

This V4B36C commercial gas open burner range operates on Natural Gas at 32,000 BTU for the Convection oven, and 35,000 BTU per burner, for a total of 172,000 BTU. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.

This gas open burner range has a 1 1/4" diameter front gas manifold and a 1 1/4" rear gas connection. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.

V series units are all modular and interchangeable to allow you to create the perfect customized workstation, including a variety of types of ranges from open burners, hot tops, French tops, charbroilers, and griddles, to other units like refrigerated bases, cabinets, convection or finishing ovens.

Vulcan V4B36C Features

  • V Series heavy-duty 36" wide range
  • Base Type: Convection Oven Base
  • Power Type: Gas / Electric
  • Base Material: Stainless Steel
  • Burner Type: Open burner
  • Burner Material: Cast iron
  • Number of Burners: 4
  • Burner BTU: 35,000
  • Individual burner pilots and controls
  • Convection Oven BTU: 32,000
  • Convection Oven Temperature Range: 175 to 550 degree F
  • Convection Oven Interior Size: 13" high x 27" wide x 27" deep
  • Convection Oven Interior Material: Porcelain
  • Gas Type: Natural Gas
  • Total BTU: 172,000
  • 9 ft power cord
  • Electrical specifications: 115 Volts, 1-phase and 4 Amps, NEMA 5-15P plug
  • 4" stainless steel stub riser
  • Gas Connection: 1 1/4" diameter rear gas connection
  • Legs: 6" adjustable stainless steel legs
  • CSA Blue Flame certified
  • CSA Design certified
  • NSF listed for safety

Vulcan V4B36C Benefits

  • Energy-efficient heavy-duty burners
  • Modular and interchangeable V series units allow you to create the perfect customized workstation
  • Durable stainless steel and heavy-duty cast iron grates stand up to any commercial kitchen environment

Overall Dimensions:
Height: 36"
Width: 36"
Depth: 36 3/4"

Oven Interior Dimensions:
Height: 13"
Width: 27"
Depth: 27"

View all Description
  • V Series heavy-duty 36" wide range
  • Oven BTU: 32,000
  • Oven Temperature Range: 175 to 550 degree F
  • Oven Interior: 13" high x 27" wide x 27" deep
  • Total BTU: 172,000
  • 4" stainless steel stub riser
  • 1 1/4" gas connection
  • Base Material: Stainless Steel
  • Burner Type: Open burner
  • Number of Burners: 4
  • Legs: 6" adjustable stainless steel legs
  • CSA Design & CSA Blue Flame certified
  • Burner BTU: 35,000
  • NSF listed for safety
  • Burner Material: Cast iron
  • Individual burner pilots and controls
  • Base Type: Convection Oven Base
  • Gas Type: Natural Gas
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
