Availability: In Stock
Vulcan V2BG8TC Liquid Propane V Series 36" Wide Thermostatic-Control Convection Oven Base 18" Manual Griddle 2 Cast Iron Open Burner Stainless Steel Range On 6" Legs, 132,000 BTU
Product Code: V2BG8TC_LP
$20,431.00
Email us to place your order and you will get a discount up to 10% off.
Description
The blower motor on the oven of this open burner range is an electric unit that runs at 115 Volts, 1-phase, and 4 Amps, and the unit comes included with a 9 ft power cord with a standard NEMA 5-15P plug. This commercial gas Open burner range is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.
There is a 4" stainless steel stub riser on this unit and the stainless steel front, front top ledge, sides, base, burner box, and stub back on this open burner range that makes it durable enough to stand up to the daily usage of any commercial kitchen environment.
This V2BG8TC commercial gas Open burner range operates on Liquid Propane at 32,000 BTU for the Convection oven, 35,000 BTU per burner, and 30,000 BTU for the griddle, for a total of 132,000 BTU and it has a 1 1/4" diameter front gas manifold and a 1 1/4" rear gas connection. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.
V series units are all modular and interchangeable to allow you to create the perfect customized workstation, including a variety of types of ranges from open burners, hot tops, French tops, charbroilers, and griddles, to other units like refrigerated bases, cabinets, convection or finishing ovens.

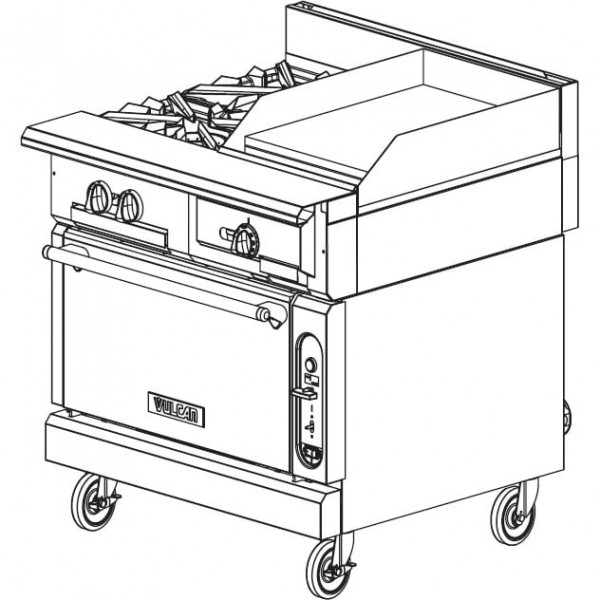

The V2BG8TC is the heavy-duty V Series 36" wide gas-powered open burner / griddle range from Vulcan that has a Convection oven base, thermostatic controls, and a 3/4" thick ground steel 18" wide griddle plate, and 2 cast iron open burners with individual pilots and controls. This oven base range stands firmly on 6" adjustable stainless steel legs.
Vulcan V2BG8TC Features
- V Series heavy-duty 36" wide range
- Base Type: Convection Oven Base
- Control Type: Thermostatic
- Base Material: Stainless Steel
- Burner Type: Open burner / Griddle
- Burner Material: Cast iron
- Number of Burners: 2
- Burner BTU: 35,000
- Individual burner pilots and controls
- Number of Griddle Plates: 1
- Griddle Plate BTU: 30,000
- Griddle Plate Width: 18"
- Oven Temperature Range: 175 to 550 degree F
- Oven Interior Size: 13" high x 27" wide x 27" deep
- Oven Interior Material: Porcelain
- Oven BTU: 32,000
- Gas Type: Liquid Propane
- Total BTU: 132,000
- 9 ft power cord
- Electrical specifications: 115 Volts, 1-phase and 4 Amps, NEMA 5-15P plug
- 4" stainless steel stub riser
- Gas Connection: 1 1/4" diameter rear gas connection
- Legs: 6" adjustable stainless steel legs
- CSA Blue Flame certified
- CSA Design certified
- NSF listed for safety
Vulcan V2BG8TC Benefits
- Energy-efficient heavy-duty burner
- Modular and interchangeable V series units allow you to create the perfect customized workstation
- Durable stainless steel and heavy-duty cast iron grates stand up to any commercial kitchen environment
Overall Dimensions:
Height: 36"
Width: 36"
Depth: 36 3/4"
Oven Interior Dimensions:
Height: 13"
Width: 27"
Depth: 27"
- Number of Griddle Plates: 1
- Griddle Plate Width: 18"
- Griddle Plate BTU: 30,000
- Individual burner pilots and controls
- Oven BTU: 32,000
- Base Type: Convection Oven Base
- Gas Type: Liquid Propane
- Oven Temperature Range: 175 to 550 degree F
- Oven Interior: 13" high x 27" wide x 27" deep
- Total BTU: 132,000
- V Series heavy-duty 36" wide range
- Control Type: Thermostatic
- 4" stainless steel stub riser
- 1 1/4" gas connection
- Base Material: Stainless Steel
- Burner Type: Open burner
- Number of Burners: 2
- Legs: 6" adjustable stainless steel legs
- CSA Design & CSA Blue Flame certified
- Burner BTU: 35,000
- NSF listed for safety
- Burner Material: Cast iron
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
