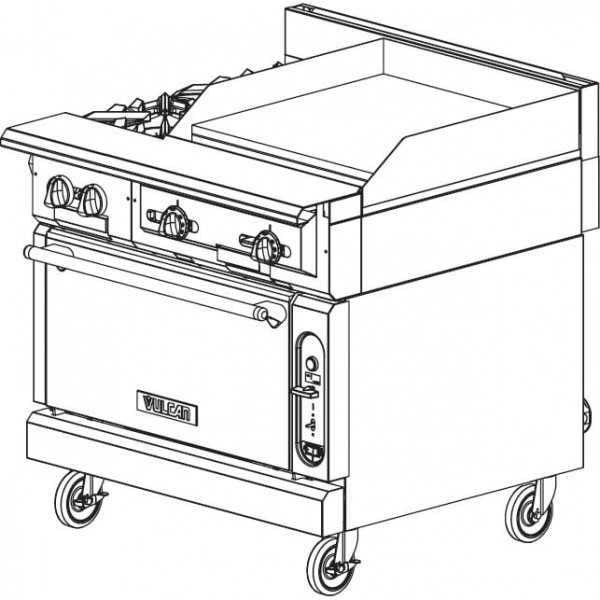

Vulcan V2BG4TB Natural Gas V Series 36" Wide Thermostatic-Control Cabinet Base 24" Manual Griddle 2 Cast Iron Open Burner Stainless Steel Range On 6" Legs, 130,000 BTU
Product Code: V2BG4TB_NAT
$12,904.00
Email us to place your order and you will get a discount up to 10% off.
Ask About This Product
Description

The V2BG4TB is the heavy-duty V Series 36" wide gas-powered open burner / griddle range from Vulcan that has a cabinet base, thermostatic controls, and a 3/4" thick ground steel 24" wide griddle plate, and 2 cast iron open burners with individual pilots and controls. This cabinet base range stands firmly on 6" adjustable stainless steel legs.

V series units are all modular and interchangeable to allow you to create the perfect customized workstation, including a variety of types of ranges from open burners, hot tops, French tops, charbroilers, and griddles, to other units like refrigerated bases, cabinets, convection or finishing ovens.

This commercial gas Open burner / Griddle range is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.

There is a 4" stainless steel stub riser on this unit and the stainless steel front, front top ledge, sides, base, burner box, and stub back on this Open burner / Griddle range that makes it durable enough to stand up to the daily usage of any commercial kitchen environment.

This V2BG4TB commercial gas Open burner / Griddle range operates on Natural Gas at 35,000 BTU per burner, and 60,000 BTU for the griddle, for a total of 130,000 BTU and it has a 1 1/4" diameter front gas manifold and a 1 1/4" rear gas connection. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.

Vulcan V2BG4TB Features

  • V Series heavy-duty 36" wide range
  • Base Type: Cabinet Base
  • Control Type: Thermostatic
  • Base Material: Stainless Steel
  • Burner Type: Open burner / Griddle
  • Burner Material: Cast iron
  • Number of Burners: 2
  • Burner BTU: 35,000
  • Individual burner pilots and controls
  • Number of Griddle Plates: 1
  • Griddle Plate Width: 24"
  • Griddle Plate BTU: 60,000
  • Gas Type: Natural Gas
  • Total BTU: 130,000
  • 4" stainless steel stub riser
  • Gas Connection: 1 1/4" diameter rear gas connection
  • Legs: 6" adjustable stainless steel legs
  • CSA Blue Flame certified
  • CSA Design certified
  • NSF listed for safety

Vulcan V2BG4TB Benefits

  • Energy-efficient heavy-duty burner
  • Modular and interchangeable V series units allow you to create the perfect customized workstation
  • Durable stainless steel and heavy-duty cast iron grates stand up to any commercial kitchen environment

Overall Dimensions:
Height: 40 1/2"
Width: 36"
Depth: 41 7/8"

View all Description
  • Burner Material: Cast iron
  • Number of Burners: 2
  • Burner BTU: 35,000
  • Control Type: Thermostatic
  • Number of Griddle Plates: 1
  • Griddle Plate Width: 24"
  • Griddle Plate BTU: 60,000
  • Individual burner pilots and controls
  • Gas Type: Natural Gas
  • Total BTU: 130,000
  • V Series heavy-duty 36" wide range
  • 4" stainless steel stub riser
  • 1 1/4" gas connection
  • Base Type: Cabinet Base
  • Base Material: Stainless Steel
  • Burner Type: Open burner
  • Legs: 6" adjustable stainless steel legs
  • CSA Design & CSA Blue Flame certified
  • NSF listed for safety
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
