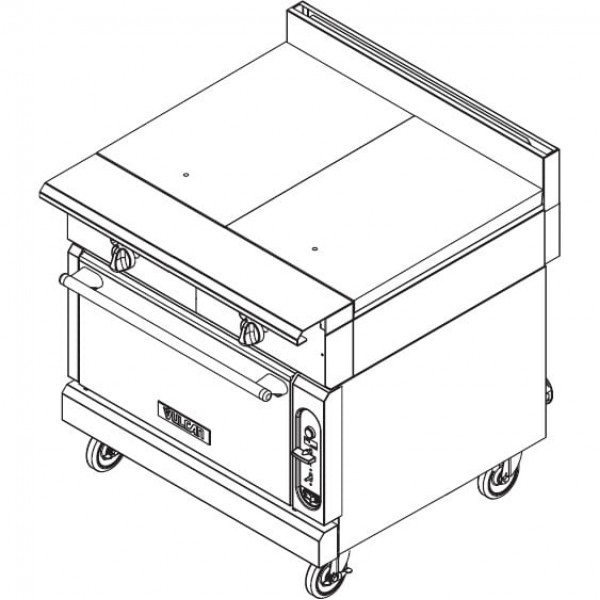

Vulcan V236HS Natural Gas V Series Standard Oven Base 36" Wide 2-Burner Full Hot Top Heavy-Duty Stainless Steel Range On Adjustable Legs, 110,000 BTU
Product Code: V236HS_NAT
$14,092.00
Email us to place your order and you will get a discount up to 10% off.
Description
There is a 4" stainless steel stub riser on this unit and the stainless steel front, front top ledge, sides, base, burner box, and stub back on this hot top range that makes it durable enough to stand up to the daily usage of any commercial kitchen environment.
The V236HS is the heavy-duty V Series 36" wide gas-powered full hot top range from Vulcan that has a Standard oven base and 2 burners with individual pilots and controls. The range stands firmly on 6" adjustable legs.
V series units are all modular and interchangeable to allow you to create the perfect customized workstation, including a variety of types of ranges from open burners, hot tops, French tops, charbroilers, and griddles, to other units like refrigerated bases, cabinets, convection or finishing ovens.
This commercial gas hot top range is CSA Blue Flame certified, CSA Design certified, and it is NSF listed for safety.
This V236HS commercial gas hot top range operates on Natural Gas at 50,000 BTU for the Standard oven and 60,000 BTU/hr for the burners (30,000 BTU per burner) for a total of 110,000 BTU for the unit. The Standard oven has a porcelain interior that is 13" high x 27" wide x 27" deep with a 150 to 550 degree F temperature range.
The blower motor on the Standard oven of this hot top range is an electric unit that runs at 115 Volts, 1-phase, and 4 Amps and the unit comes included with a 9 ft power cord with a standard NEMA 5-15P plug.
This hot top range has a 1 1/4" diameter front gas manifold and a 1 1/4" rear gas connection. All gas connections should be made by qualified personnel who will follow all of the proper safety codes and guidelines.
Vulcan V236HS Features
- V Series heavy-duty 36" wide full hot top range
- Base Type: Standard Oven
- Gas Type: Natural Gas
- Base Material: Stainless Steel
- Individual burner pilots and controls
- Standard Oven BTU: 50,000
- Standard Oven Temperature Range: 150 to 550 degree F
- Standard Oven Interior Size: 13" high x 27" wide x 27" deep
- Standard Oven Interior Material: Porcelain
- Electrical specifications: 115 Volts, 1-phase and 4 Amps, NEMA 5-15P plug
- 9 ft power cord
- Burner BTU: 30,000
- CSA Design certified
- 6" adjustable legs
- Total BTU: 110,000
- Gas Connection: 1 1/4" diameter rear gas connection
- 4" stainless steel stub riser
- CSA Blue Flame certified
- CSA Design certified
- NSF listed for safety
Vulcan V236HS Benefits
- Energy-efficient heavy-duty burner
- Modular and interchangeable V series units allow you to create the perfect customized workstation
- Durable stainless steel and heavy-duty cast iron grates stand up to any commercial kitchen environment
Overall Dimensions:
Height: 40 1/2"
Width: 36"
Depth: 41 7/8"
Oven Interior Dimensions:
Height: 13"
Width: 27"
Depth: 27"
- Total BTU: 110,000
- 4" stainless steel stub riser
- V Series heavy-duty full hot top range
- Base Type: Standard Oven
- Gas Type: Natural Gas
- Number of Burners: 2
- Base Material: Stainless Steel
- Gas Connection: 1 1/4" diameter rear gas connection
- CSA Design & CSA Blue Flame certified
- NSF listed for safety
- Individual burner pilots and controls
- Standard Oven BTU: 50,000
- Standard Oven Temperature Range: 150 to 550 degree F
- Porcelain oven interior
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
