Availability: In Stock

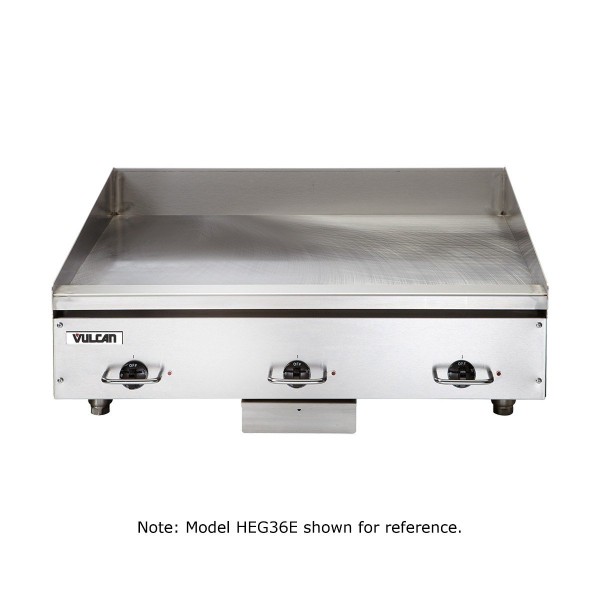

Vulcan HEG48E 48" Electric Countertop Griddle with Snap-Action Thermostatic Controls - 21.6 kW, 208v/60/1ph
Product Code: HEG48E_208-60-1
$8,735.00
Email us to place your order and you will get a discount up to 10% off.
Description
The HEG48E is a 48" wide, heavy-duty electric countertop griddle from Vulcan. This griddle includes a 1/2" thick polished steel griddle plate with solid sheathed tubular incoloy heating elements. There is a bottom mounted snap action thermostat every 12" on the cooking surface of the electric countertop griddle. The surface measures 48" x 24". Thermostats can be set from 200 to 450° F.
The griddle features a stainless steel front, sides, and a "Cool Bullnose" front top ledge. There is also a front grease trough. This product has a 4" back and tapered side splashes and it stands firmly on 4" adjustable legs. The grease trough empties into a large capacity grease drawer.
This unit runs at 208 volts, 60 hertz, and 1 phase. The HEG48E is NSF certified and UL listed.
The HEG60E electric griddle require two separate electrical connections and runs at either 208 Volts, 1-phase and 77.9/51.9 Amps or 3-phase and 45.0/45.0, 22.5, and 22.5 Amps per line, or 240 Volts, 1-phase and 67.5 /45.0 or 3-phase and 39.0 /39.0, 19.5, and 19.5 per line for a total of 27,000 Watts.
Vulcan HEG48E Features
- Countertop Griddle
- Electric
- Material: Stainless Steel
- Polished Griddle Plate
- 1/2” Steel Plate
- 48” x 24” Cooking Surface
- Tubular Incoloy Elements
- Temperature Range: 200-450°F
- "Cool Bullnose" Front Top Ledge
- (4) Bottom Mounted Snap Action Thermostats
- Front Grease Trough & Drawer
- 4" Back and Tapered Side Splashes
- Chrome Knob Guards
- 4" Adjustable Legs
- Electrical: 208v/60/1ph
- Amps: 103.8
- NSF certified
- UL listed
Overall Dimensions:
Height: 15.3"
Width: 48"
Depth: 31.5"
- Electric
- Material: Stainless Steel
- Polished Griddle Plate
- 1/2” Steel Plate
- 48" x 24” Cooking Surface
- Tubular Incoloy Elements
- Temperature Range: 200- 450°F
- "Cool Bullnose" Front Top Ledge
- (4) Bottom Mounted Snap Action Thermostats
- Front Grease Trough & Drawer
- 4" Back and Tapered Side Splashes
- Chrome Knob Guards
- 4" Adjustable Legs
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
