Availability: In Stock

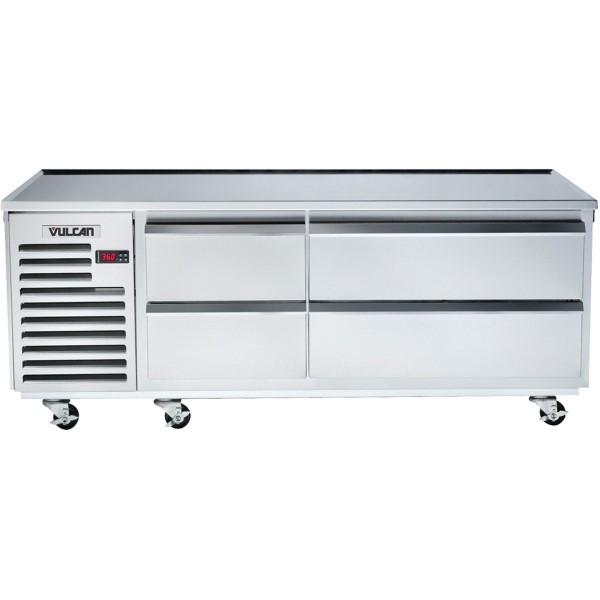

Vulcan ARS72 Achiever Series 72" Wide 4-Drawer 8-Pan Capacity Stainless Steel Insulated Self-Contained Refrigerated Base On Heavy-Duty Casters, 115V 1-Phase 1/3 HP
Product Code: ARS72-1
$17,832.00
Email us to place your order and you will get a discount up to 10% off.
Ask About This Product
Description

There is a side-mounted, balanced, self-contained refrigeration system on this base unit that operates with R-404 refrigerant.

This refrigerated base features a marine edge top, stainless steel front, top, and sides, and a heavy-gauge galvanized steel back and bottom. The unit rolls smoothly on a set of heavy-duty casters. There is an LED temperature display on this refrigerated base and it has an RS485 data port.

The ARS72 is the Achiever series 72" wide refrigerated base on heavy-duty casters from Vulcan with a dedicated rear-mounted evaporator that circulates cold air through each drawer section.

There are 4 drawers on this refrigerated base and each drawer is designed to hold 2 full-size 12" x 20" x 6" deep pans for a total 8-pan capacity. The durable, corrosion-resistant stainless steel construction of this refrigerated base unit will stand up to the daily usage of any commercial kitchen environment.

The operating temperature can be set on this refrigerated base between 34 to 38 degrees F. This commercial electric refrigerated base is UL listed in the United States and Canada, and it is NSF listed for safety.

The cabinet and drawers of this refrigerated base are both insulated with 2" thick high-density, non-CFC, foamed in place polyurethane. There are water-resistant INTELA-TRAUL microprocessor controls on this refrigerated base unit that are easy to use and the unit is NAFEM Data Protocol communication (NDP) ready.

The ARS72 refrigerated base is an electric unit that runs at 115 Volts, 60 Hertz, 1-phase, and 6.7 Amps for the 1/3 HP 2,440 BTU compressor and it comes with a 9 ft power cord with a NEMA 5-15P plug.

Vulcan ARS72 Features

  • Achiever series 72" wide refrigerated base
  • Marine top
  • Number of Drawers: 4
  • Pan Capacity: 8 Full-Size (12" x 20" x 6" deep)
  • Controls: INTELA-TRAUL microprocessor controls
  • Operating Temperature Range: 34 to 38 degrees F
  • Top, Front & Side Material: Stainless Steel
  • Back & Bottom Material: Galvanized Steel
  • Refrigerant: R-404
  • RS485 data port
  • LED temperature display
  • Insulation: 2" thick high-density, non-CFC, foamed in place polyurethane
  • NAFEM Data Protocol communication (NDP) ready
  • BTU: 2,440
  • Condenser Location: Left-Side
  • Heavy-duty casters
  • Self-contained refrigeration system
  • 9 ft power cord included
  • Electrical specifications: 115 Volts, 60 Hertz, 1-phase, and 6.7 Amps for the 1/3 HP 2,440 BTU compressor, NEMA 5-15P plug
  • UL listed in the United States and Canada
  • NSF listed for safety

Vulcan ARS72 Benefits

  • Easy to use INTELA-TRAUL microprocessor controls
  • Dedicated rear-mounted evaporator circulates cold air through each drawer section
  • Durable stainless steel will stand up to the daily usage of a commercial kitchen environment

Overall Dimensions:
Height: 26"
Width: 72"
Depth: 34"

View all Description
  • 115 Volts, 1/3 HP, NEMA 5-15P plug
  • UL listed in the United States and Canada
  • NSF listed for safety
  • Achiever series 72" wide refrigerated base
  • Marine top
  • Number of Drawers: 4
  • Pan Capacity: 8 Full Size (12" x 20" x 6" deep)
  • Controls: INTELA-TRAUL microprocessor controls
  • Operating Temperature Range: 34 to 38 degrees F
  • Top, Front & Side Material: Stainless Steel
  • BTU: 2,440
  • Condenser Location: Left-Side
  • Heavy-duty casters
  • Self-contained refrigeration system
  • Back & Bottom Material: Galvanized Steel
  • Refrigerant: R-404
